Description

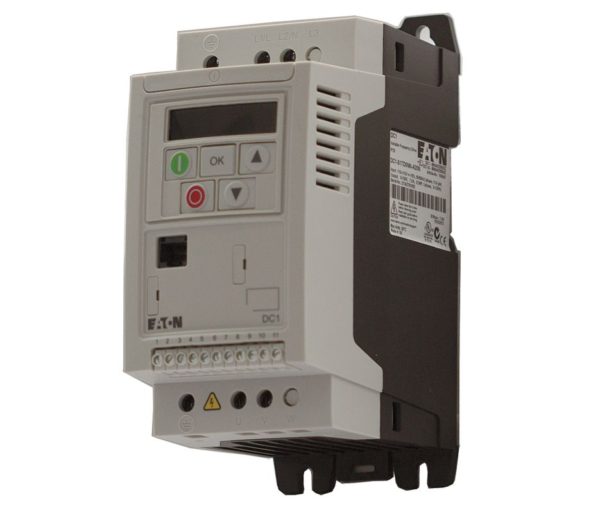

Frequency Drive
Max. HP1 EnclosureOpen
Input Voltage115VAC Max. Output Amps4. 3 Output Voltage240VAC
Input Phase AC1 Output Phase AC3 With Bypass / No
BypassNo Bypass With Line Contactor / No Line
ContactorNo Line Contactor
Starting Torque175%
Torque @ 1 Hz175%
Input Frequency50/60 Hz
Output Frequency Range0 to 500 Hz
Adjustable Acceleration Time0 to 600 sec.
Adjustable Deceleration Time0 to 600 sec.
Dynamic BrakingInternal Switch/External
Resistor Height7.24″ Width3.19″ Depth4.88″
Control TypeKeypad/Remote
Key Pad LockoutYes Start/Stop
ControlProgrammable ProtectionIP20
Control MethodSensor less Flux Vector Automatically Calculates Optimum Motor Performance for Low-Speed,
High-Starting Torque Applications Accepts Input Control SignalYes Display TypeLED,
7-Digital Display Assembly DisplaysLED Digital ReadoutYes
For Use With3-Phase Inverter Duty Motor
StandardsUL, cUL, CE, EN 60529, 61800-5-1,
